The Easyone Spirometer can be used to view tests and to do online testing. When you connect your spiromter, using the USB cable, to you laptop computer, data or tests stored in the Easyone spirometer are transferred to your laptop database. The Main Screen or Data Grid shown on the main screen shows a list of all test stored in your spirometer.
In addition to viewing the tests, you may need to check your spirometer's configuration. With the spirometer connected to your laptop, click on the View --> Device Configuration locate at the top of the screen as shown below.
A screen will appear with three tabs. On the Test Configuration Tab is particularly import that the Storage Option be set to all curves. On the General Configuration Tab, it is particularly important that the Technician ID be yes and the Date of Birth or Age be set to Age. The Report Configuration Tab is not as critical as the other two tabs.
Test should be
conducted using the Easyone spirometer connected to the laptop and can be

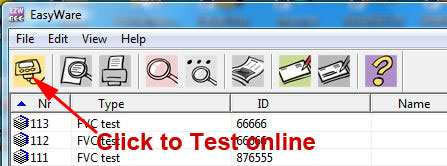

started after clicking the Test Online icon shown on right. When
you click on this icon the Online Test Screen
will appear. You can also double-click on any row to
Display a Test Result.
